T2N BLISS

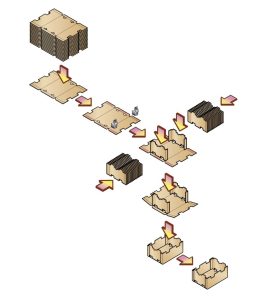

Bliss Automatic Tray Forming Machine. The blank is picked from the horizontal loader by 4 vacuum cups. The blank is then driven by the main chain to the forming section. During forward movement the glue is applied. The blank is first centred under the forming head and then pushed inside the forming section. During the stroke the sides are glued to form the bliss box.
Caractéristiques techniques
- Maximum flexibility and stability
- Production statistics control
- Low maintenance
- Minimum wastage
- Quick changeover
| Maximum production speed | up to 1800 trays/h |
| Electrical supply | 400V (3 Ph+N+T) / 50Hz |
| Max compressed air consumption | 30 Nl/tray |
| Working pressure | 6 bar |
| Required power | 7 kW |

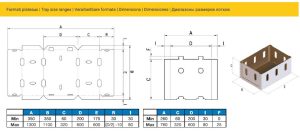

Modèles de plateaux
Nos machines
Pour plus d'informations, appelez-nous !
+39 0545 85511
Brochure
Download or browse the brochure of Teco T2N BLISS to see in detail all the technical features of the machine, the working cycle, the plateaux formats and the options.
